<h4 data-section-id="1pi78xj" data-start="804" data-end="834"><span role="text"><strong data-start="807" data-end="834">Key Features & Benefits</strong></span></h4>
<ul data-start="836" data-end="1392">
<li data-section-id="hxefi3" data-start="836" data-end="957"><strong data-start="838" data-end="869">High Compaction Performance</strong><br data-start="869" data-end="872" />Generates 15 kN centrifugal force for fast, uniform, and reliable soil compaction</li>
<li data-section-id="6cmv3v" data-start="959" data-end="1059"><strong data-start="961" data-end="990">Compact & Portable Design</strong><br data-start="990" data-end="993" />Built-in transport wheels allow easy mobility across job sites</li>
<li data-section-id="xrqnn8" data-start="1061" data-end="1167"><strong data-start="1063" data-end="1094">Operator-Friendly Operation</strong><br data-start="1094" data-end="1097" />Low vibration design reduces fatigue and improves handling comfort</li>
<li data-section-id="1srhtnu" data-start="1169" data-end="1289"><strong data-start="1171" data-end="1198">Heavy-Duty Construction</strong><br data-start="1198" data-end="1201" />Durable ductile iron base plate ensures long service life and consistent performance</li>
<li data-section-id="dpypx3" data-start="1291" data-end="1392"><strong data-start="1293" data-end="1318">Versatile Application</strong><br data-start="1318" data-end="1321" />Suitable for compacting sand, gravel, soil, pavers, and trench work</li>
</ul>
<hr data-start="1394" data-end="1397" />
<h4 data-section-id="q11yyz" data-start="1399" data-end="1420"><span role="text"><strong data-start="1402" data-end="1420">Specifications</strong></span></h4>
<ul data-start="1422" data-end="1734">
<li data-section-id="r4b2zo" data-start="1422" data-end="1452"><strong data-start="1424" data-end="1434">Model:</strong> C90T – Gasoline</li>
<li data-section-id="1t386vr" data-start="1454" data-end="1543"><strong data-start="1456" data-end="1491">Overall Dimensions (L × W × H):</strong><br data-start="1491" data-end="1494" />900 × 480 × 1100 mm<br data-start="1515" data-end="1518" />(35.4 × 18.9 × 43.3 in)</li>
<li data-section-id="eyu1gx" data-start="1545" data-end="1600"><strong data-start="1547" data-end="1562">Plate Size:</strong><br data-start="1562" data-end="1565" />480 × 520 mm<br data-start="1579" data-end="1582" />(18.9 × 20.5 in)</li>
<li data-section-id="eq8zzf" data-start="1602" data-end="1633"><strong data-start="1604" data-end="1625">Operating Weight:</strong> 80 kg</li>
<li data-section-id="77ihgw" data-start="1635" data-end="1667"><strong data-start="1637" data-end="1659">Centrifugal Force:</strong> 15 kN</li>
<li data-section-id="1u78ulb" data-start="1669" data-end="1734"><strong data-start="1671" data-end="1692">Compaction Speed:</strong><br data-start="1692" data-end="1695" />6 – 13 m/min<br data-start="1709" data-end="1712" />(19.7 – 42.6 ft/min)</li>
</ul>
<hr data-start="1736" data-end="1739" />
<h4 data-section-id="12mrl93" data-start="1741" data-end="1761"><span role="text"><strong data-start="1744" data-end="1761">Engine & Fuel</strong></span></h4>
<ul data-start="1763" data-end="1884">
<li data-section-id="1pgx5oo" data-start="1763" data-end="1821"><strong data-start="1765" data-end="1781">Engine Type:</strong> Lifan Gasoline Engine (EPA compliant)</li>
<li data-section-id="5trf3b" data-start="1822" data-end="1850"><strong data-start="1824" data-end="1841">Power Output:</strong> 6.5 HP</li>
<li data-section-id="12ps1yk" data-start="1851" data-end="1884"><strong data-start="1853" data-end="1876">Fuel Tank Capacity:</strong> 3.1 L</li>
</ul>
<hr data-start="1886" data-end="1889" />
<h4 data-section-id="ajnu46" data-start="1891" data-end="1907"><span role="text"><strong data-start="1894" data-end="1907">Logistics</strong></span></h4>
<ul data-start="1909" data-end="1941">
<li data-section-id="1pifmid" data-start="1909" data-end="1941"><strong data-start="1911" data-end="1930">Packing Volume:</strong> 0.37 CBM</li>
</ul>
Read more
<ul class="ProductOverviewDesktop__List-sc-1cd37aw-0 gylcLu" data-test-id="list">
<li class="ProductOverviewDesktop__ListItem-sc-1cd37aw-1 kcznde"><span class="sc-aXZVg sc-kAyceB gUauWZ eCylQp">Ideal for compacting multiple types of material</span></li>
<li class="ProductOverviewDesktop__ListItem-sc-1cd37aw-1 kcznde"><span class="sc-aXZVg sc-kAyceB gUauWZ eCylQp">Single direction vibration plate</span></li>
<li class="ProductOverviewDesktop__ListItem-sc-1cd37aw-1 kcznde"><span class="sc-aXZVg sc-kAyceB gUauWZ eCylQp">Suitable for outdoor applications only</span></li>
<li class="ProductOverviewDesktop__ListItem-sc-1cd37aw-1 kcznde"><span class="sc-aXZVg sc-kAyceB gUauWZ eCylQp">Compact and portable for easy transportation</span></li>
<li></li>
</ul>
Read more

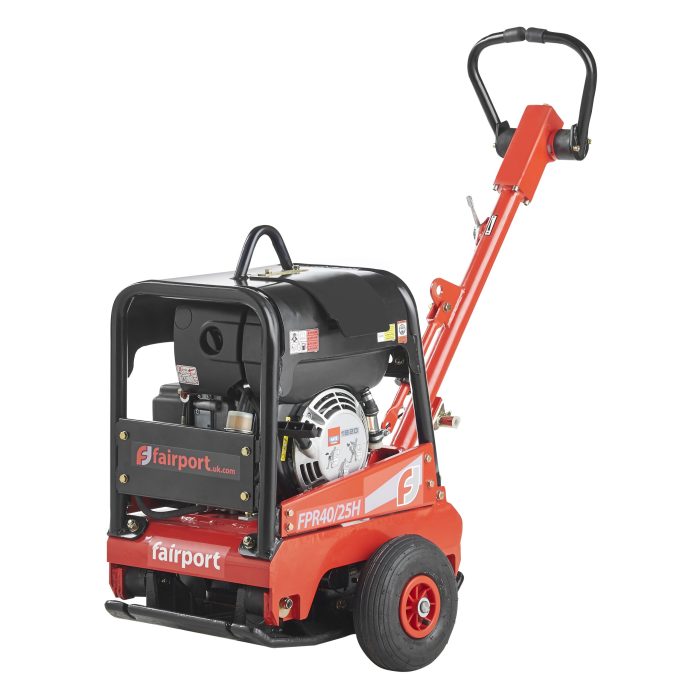

This versatile plate is ideal for use on sand, gravel, and cohesive soils. Increased compaction force with smooth transition between forward and reverse travel.
<ul>
<li>Heavy duty roll-cage with lifting eye</li>
<li>Hydraulic forward and reverse mechanism</li>
<li>On-the-spot compaction</li>
<li>Reverse travel safety protection ensures machine travels forward if operator releases handle</li>
<li>Impact resistant and open, self cleaning base-plate</li>
<li>Sealed belt cover design for clutch and belt protection</li>
<li>Handle folds to 45° and 90° for easy transportation and storage</li>
<li>Transport wheels included with all models</li>
</ul>
<ul class="tabs wc-tabs" role="tablist">
<li id="tab-title-additional_information" class="additional_information_tab active"><a tabindex="0" role="tab" href="https://fairport.uk.com/product/fpr4025h-petrol-reversible-plate-compactor/#tab-additional_information" aria-controls="tab-additional_information" aria-selected="true">Specifications</a></li>
</ul>
<div id="tab-additional_information" class="woocommerce-Tabs-panel woocommerce-Tabs-panel--additional_information panel entry-content wc-tab" role="tabpanel" aria-labelledby="tab-title-additional_information">
<table class="woocommerce-product-attributes shop_attributes" style="height: 516px;" width="522" aria-label="Product Details">
<tbody>
<tr class="woocommerce-product-attributes-item woocommerce-product-attributes-item--attribute_engine">
<th class="woocommerce-product-attributes-item__label" scope="row">Engine</th>
<td class="woocommerce-product-attributes-item__value">Honda GX160</td>
</tr>
<tr class="woocommerce-product-attributes-item woocommerce-product-attributes-item--attribute_power-hpkw">
<th class="woocommerce-product-attributes-item__label" scope="row">Power HP/KW</th>
<td class="woocommerce-product-attributes-item__value">5.5/4.0</td>
</tr>
<tr class="woocommerce-product-attributes-item woocommerce-product-attributes-item--attribute_centrifugal-force-kn">
<th class="woocommerce-product-attributes-item__label" scope="row">Centrifugal Force KN</th>
<td class="woocommerce-product-attributes-item__value">25</td>
</tr>
<tr class="woocommerce-product-attributes-item woocommerce-product-attributes-item--attribute_plate-size-w-x-l-mm">
<th class="woocommerce-product-attributes-item__label" scope="row">Plate size W x L mm</th>
<td class="woocommerce-product-attributes-item__value">400 x 650</td>
</tr>
<tr class="woocommerce-product-attributes-item woocommerce-product-attributes-item--attribute_vibrator-frequency-vpm">
<th class="woocommerce-product-attributes-item__label" scope="row">Vibrator Frequency VPM</th>
<td class="woocommerce-product-attributes-item__value">5400</td>
</tr>
<tr class="woocommerce-product-attributes-item woocommerce-product-attributes-item--attribute_hav-ms%c2%b2">
<th class="woocommerce-product-attributes-item__label" scope="row">HAV m/s²</th>
<td class="woocommerce-product-attributes-item__value">4.2</td>
</tr>
<tr class="woocommerce-product-attributes-item woocommerce-product-attributes-item--attribute_weight-kg">
<th class="woocommerce-product-attributes-item__label" scope="row">Weight Kg</th>
<td class="woocommerce-product-attributes-item__value">145</td>
</tr>
</tbody>
</table>
</div>
Read more
<ul>

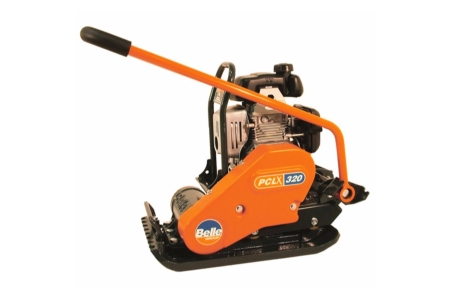

<li><strong>320mm Petrol Vibrating Plate Compactor</strong>This heavy-duty lightweight plate offers great compaction and gives reliability and superb performance when used to compact sub base, asphalt on driveways, parking spaces and much more.This is the ideal piece of equipment to help with your landscape garden project, driveway, putting in a walkway or building a patio.<strong>Features Include:</strong>
<ul>
<li>Reduced hand/arm vibration design for safer and longer usage.</li>
<li>Manual handling points for easy two-person lift.</li>
<li>Lightweight and durable for easy transportation.</li>
<li>Easy to operate and control.</li>
<li>Protective frame for vulnerable machine components.</li>
</ul>
</li>
</ul>
